Cold Chain Loading and Unloading System Solutions
Becoming a Leading Smart Access Solution Provider
Rational Planning
Making Cold Storage More Energy-Efficient, Safer, and Higher in Efficiency
Energy Conservation
In cold storage operations, potential energy loss can occur at every corner. At the loading bay, typical dock levelers under sectional doors can result in gaps between the leveler and the pit, exposure to outdoor temperatures, and poor sealing between the truck and the cold storage—all contributing to energy loss and higher operational costs. Conventional cold storage doors, with their poor sealing and low speed, are a primary source of inefficiency.
- Cold loss prevention and energy efficiency should be top priorities during planning, construction, and renovation.
Environmental Control
Due to the sensitivity of goods stored in cold storage, improper sealing during loading/unloading is highly detrimental. Energy loss, air exchange, and temperature fluctuations can cause spoilage, contamination, food safety issues, and decreased employee comfort.
- Addressing the sealing challenge for various truck sizes is a key planning concern.
Safety
During cargo handling and loading/unloading, safety for personnel, cargo, equipment, and vehicles is critical. Cold storage loading areas are busy zones with mixed traffic, and poor insulation and sealing lead to heavy condensation, slippery surfaces, and increased accident risk. Inside the cold room, floor icing becomes hazardous for vehicles and workers.
- Proper design, product selection, and regulated operation ensure safe cold storage operations.
Efficient Operation
Automatic door operation is essential for energy conservation, yet traditional doors open and close slowly, delaying drivers and impacting productivity. They’re also prone to damage and hard to repair, causing downtime.
- Choosing high-speed, impact-resistant, low-maintenance, and durable cold storage doors is imperative.
The Right Products
Achieve Energy Efficiency, Safety, and Operational Excellence in Cold Storage
Cold Storage Door Solutions
TSS1020 High-Speed Sliding Door
Ideal for fast, frequent, and high-insulation applications. One door solves both speed and insulation needs—an excellent replacement for standard cold storage doors.
PVC Insulated High-Speed Door
Opens rapidly to reduce air exchange during frequent movement, reducing energy loss. Suitable for temperature-controlled or retrofitted cold rooms.
Loading Dock Solutions
Insulated Sectional Door
Engineered to prevent thermal conduction. High-density polyurethane core for excellent insulation; heated window prevents condensation and maintains visibility.
Hydraulic Dock Leveler
Provides excellent sealing during unloading. Various models available for different truck sizes and building structures.
Telescopic Dock Leveler
Features a 1000mm adjustable lip for seamless connection with trucks, enhancing sealing and thermal insulation.
Mechanical Dock Shelter
For areas with variable truck sizes and less strict sealing needs.
Foam Dock Seal
Good sealing performance for more standardized truck sizes.
Inflatable Dock Seal
Offers excellent sealing for multiple truck sizes—ideal for cold storage docks.
Common Risks of Standard Cold Storage Doors
Underestimated Losses from Low-Efficiency Doors
- Slow operation reduces logistics efficiency and increases energy loss every time the door opens.
- Defrosting and de-icing processes consume time and labor.
- Increased electricity bills due to longer cooling times and inefficiency.
- Food safety risks from temperature fluctuations and air contamination.
- Frequent damage from forklifts; steel doors are hard to repair.
- Condensation and ice formation on floors raise accident risks.
- Refrigeration system damage due to moisture and ice on evaporators and coils.
- High costs and labor required for ice removal from ceilings and equipment.
Advantages of High-Speed Sliding Doors for Cold Storage
Increased Efficiency
Opening speed of up to 2.5 m/s—over 4 times faster than conventional doors—greatly boosts logistics throughput and competitiveness.
Energy and Cost Savings
Minimizes energy loss from air exchange; reduces refrigeration power use—saves up to ¥300,000 per door annually.
Frequent Use
Durability of up to 2 million cycles; suitable for high-frequency daily use with minimal maintenance costs.
High Insulation
Third-generation waterproof core, 100mm thick panel, R-value of 17. Ensures optimal temperature control.
Maintenance-Free
Flexible PVC and EVA panel withstands heavy impact; automatically resets after forklift collisions, reducing repair costs and downtime.
Energy Saving Calculation Example
For a cold storage using ammonia refrigeration:
- Internal temp: -18°C
- External temp: 10°C
- Internal RH: 26%
- External RH: 60%
- Door usage: 15 open/close cycles per hour, 24/7, 365 days
- Original door: steel sliding, damaged and poorly sealed
- Replacement: TSS1020 high-speed sliding door
Result:
Annual electricity savings of 67,733.14 kWh (80% reduction).
Air exchange accounts for 82.5% of total energy loss—minimizing open time is the most effective solution.
Product Highlights

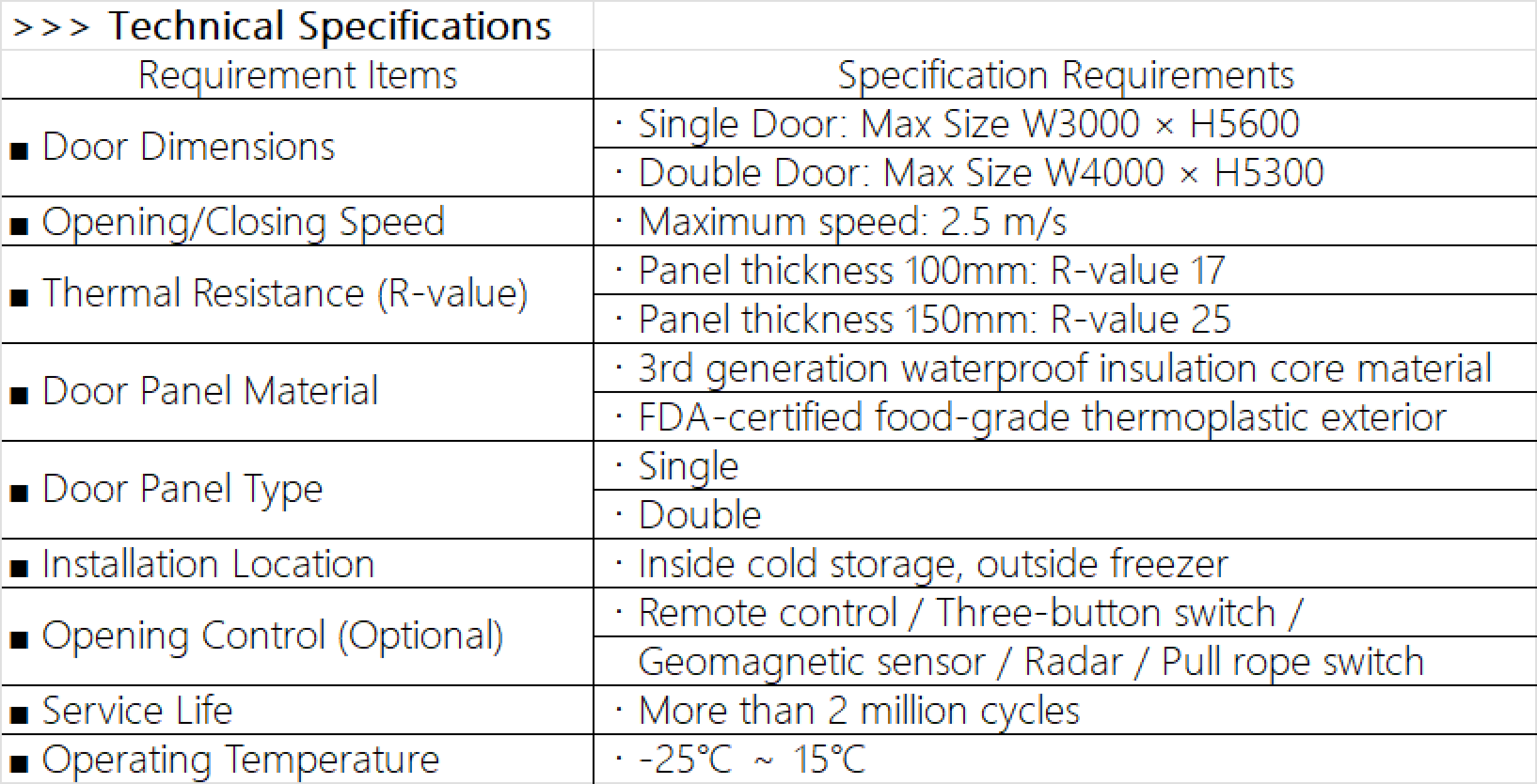

TSS1020 High-Speed Sliding Door
- Speed up to 2.5 m/s
- Flexible panel auto-resets after impact
- Sealed edges and adjustable bottom gasket for tight insulation
- Ideal for food, pharmaceutical, and cold storage sectors

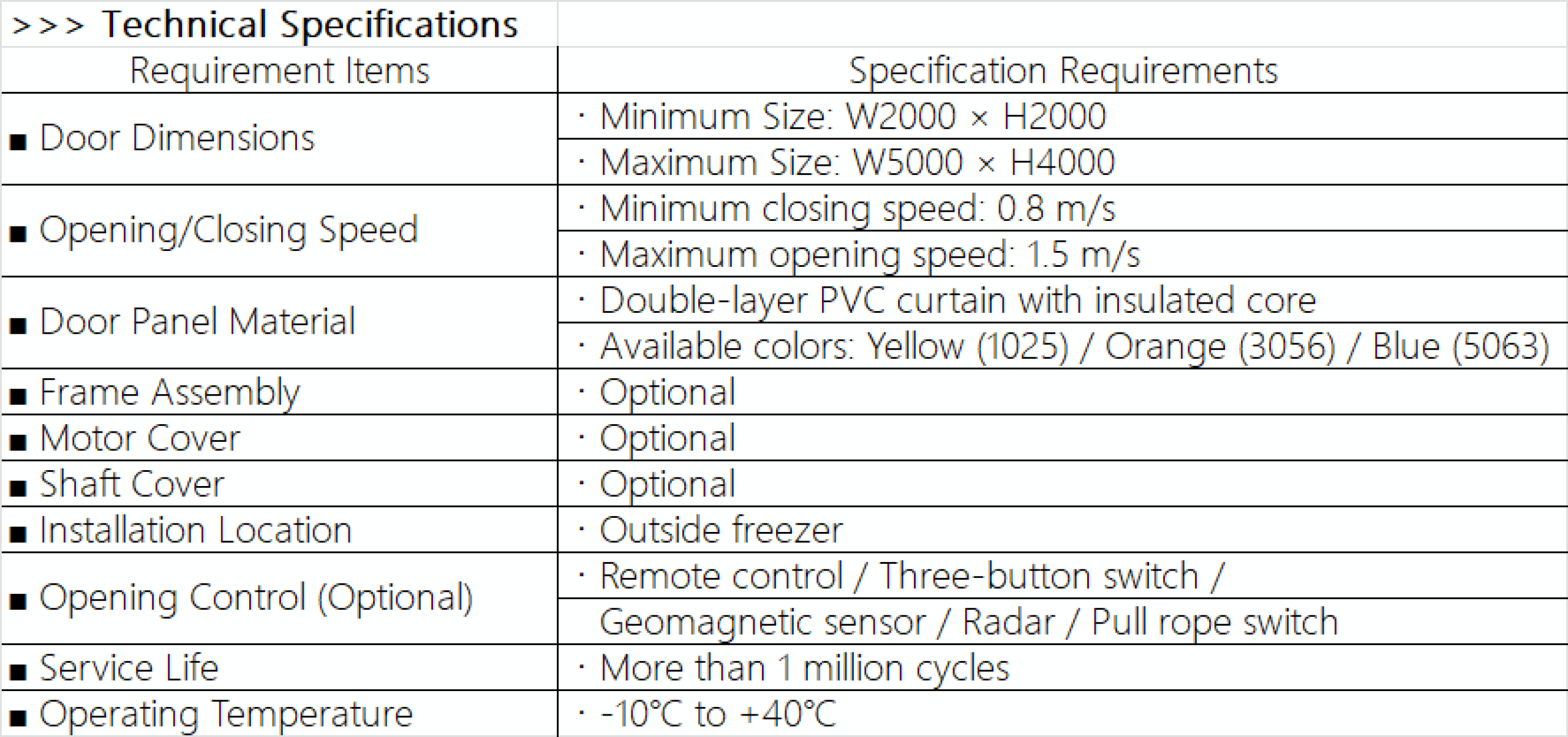

BKS01 PVC Insulated High-Speed Door
- Thermal curtain reduces heat transfer and condensation
- Soft bottom edge avoids injury and damage; auto-reset feature
- Used with standard sliding doors in cold environments
- Suitable for food, pharmaceutical, and warehouse applications

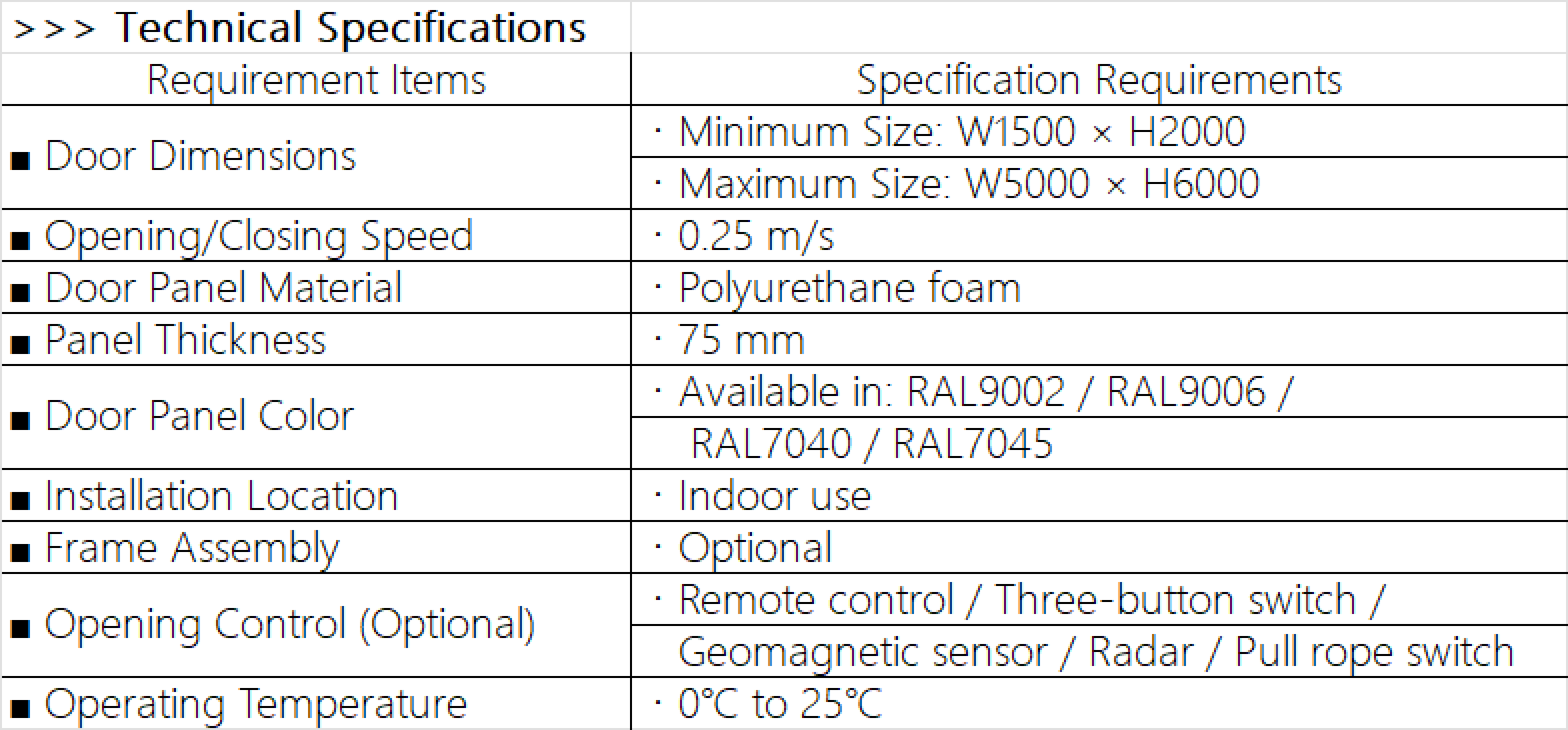

BHS03 Insulated Sectional Door for Cold Storage
- Suitable for 0–10°C zones, resistant to condensation
- Aluminum-magnesium alloy and rustproof parts
- Electrically heated windows remain fog-free
- Features include insulated tracks, electrophoresis-treated springs, hand-free operation, sealed tracks, and heated glass panels
Dock Levelers
Improve Efficiency with One-Step Loading/Unloading
Dock levelers adjust height differences between truck beds and docks, providing a smooth, safe, and fast operation. Ideal for cold storage where insulation is critical.
Types:
- Flip Lip Dock Leveler: Requires special sealing treatment for cold storage.
- Telescopic Dock Leveler: Best for insulation and sealing—highly recommended.
Cold storage dock levelers are installed under sectional doors. If left unsealed, openings or gaps allow heat exchange, affecting the internal temperature and increasing energy costs.
H-1000 Series / Bremet Elite Series
Flip Lip Hydraulic Dock Leveler
Achieves level loading and unloading, improving efficiency
Widely used at modern logistics dock bays
Enhanced Safety Features
Reinforced Deck Support
The underside of the deck is reinforced with 8–10 C-shaped beams to maintain deck flexibility and provide optimal support.
Inverted Hydraulic Cylinder Design
The inverted hydraulic cylinder design prevents dust accumulation, which can lead to oil seal leakage or failure of the safety lock valve.
Smooth Transition Design
The lip adopts a double 5° arch design, increasing the contact area with truck beds and ensuring smoother transitions.
A patented curved tail section ensures continuous contact between the dock leveler and forklift wheels at all operating heights, reducing vibrations, protecting cargo, and minimizing operator fatigue and occupational hazards.
Full-Length Maintenance Support Bar
Provides effective support for both the platform and lip. It resists impacts from both front and sides. The central support point on the lip enhances safety and impact resistance.
Enclosed Tubular Hinge
The hinge design increases contact area with the hinge pin, distributes stress more evenly, and allows grease injection for smooth lip operation.
Smart Control System
Equipped with a patented IoT-enabled control box that supports expandable smart features, helping clients realize intelligent loading dock management.
D-1000 Series
Telescopic Hydraulic Dock Leveler
Optimized for cold storage docks with thermal bridge isolation design, reducing energy consumption
Fully Sealed Dock Design
Sealing is a critical requirement. The telescopic dock leveler is installed inside the cold storage sectional door. When the door is closed, the leveler rests at the bottom of the pit, completely isolating indoor and outdoor air, reducing energy loss.
Full Cold Chain Concept
For clients with stricter requirements, the pit can be specially designed to allow refrigerated trucks to dock first before opening their doors from inside the building, minimizing internal temperature fluctuation.
Flexible Extension Length
The telescopic lip can be installed inside the cold storage bay and extend up to 1000mm or 1200mm, ensuring smooth loading/unloading.
Available in:
- Indoor Installation
- Outdoor Installation
XHF01 Dock House
Energy-saving, space-efficient loading bay solution
For sites with spacious external parking areas, a dock house is an ideal solution for thermal insulation. Installed outside the insulated sectional door, it saves valuable cold storage interior space and includes a loading bay, dock leveler, dock seals/shelters, etc.
Once the door is closed, indoor and outdoor airflows are completely blocked, achieving excellent sealing.
Dock houses are custom-sized according to the door and dock dimensions. They are statically load-tested and typically use modular structures for ease of transport and on-site installation.
Panels are made of polyurethane with 42mm, 50mm, or 75mm thickness. The base frame can also be insulated as per client requirements.
JMF01 Mechanical Dock Shelter
Wider vehicle compatibility for a sealed environment
Benefits
- Wind, rain, dust, and air barrier—enhances sealing between vehicle and warehouse
- Improves working environment and promotes energy savings and smooth warehouse operations
Curtain Materials
Made of neoprene rubber or polyethylene fiber with PVC coating
- Tensile strength: 9800/8300 N/5cm
- Tear strength: 1700/1500 N
Frame Structure
Composed of a front frame, rear frame, and connecting arms
- Hot-dip galvanized for corrosion resistance
- Fixed and decorated with anodized aluminum alloy for an attractive appearance
Steel Protection Devices
Steel protectors shield the shelter and goods during docking, reducing maintenance needs.
Reinforced Frame
Prevents frame from bending outward under heavy pressure.
Sloped Top for Drainage
The sloped design facilitates effective rainwater drainage.
Retractable Frame
Hinged connections allow compression under vehicle pressure, offering flexibility and better fit.
Bottom Corner Pads
Ensure vertical alignment of curtains and enhance sealing performance.
Custom Sizes Available
Suitable for various truck sizes and models
- Standard heights: 3200mm, 3400mm, 3600mm
- Side depth: 600mm
- Top curtain length: 1000mm or 850mm
- Standard widths: 3200mm, 3400mm, 3600mm
- Side curtain width: 600mm
HMF01 Foam Dock Seal
Optimal choice for standardized truck sizes
Tight Sealing
Made of high-performance foam with a maximum compression density of 70%.
Enhanced Safety
Effectively reduces energy loss while protecting personnel and goods.
Reduced Pressure and Friction
Unique pressure-relief design reduces wear between the seal and vehicle, extending service life.
Guide Strips
Equipped with reflective yellow guide lines for improved docking accuracy and safety.
Durable Pleated Fabric
Located on the sides and top to enhance wear resistance and longevity.
Galvanized Steel Backing
Eliminates issues found with traditional wood backing such as warping, rotting, or corrosion.
Reinforced Performance
Fabrics are secured with screws and metal grommets to ensure consistent air release.
Top Designs Available Based on Truck Height
Fixed
Adjustable
Hanging curtain type
CQMZ Inflatable Dock Seal
Ideal for energy-intensive cold storage facilities
Easy Operation
Once the vehicle docks, the blower activates to inflate the seal, tightly sealing all gaps between the truck and the dock.
Soft materials avoid damaging vehicle surfaces. Continuous operation of the blower ensures stable pressure and wind resistance.
After loading, the blower is turned off, air is released automatically, and the airbags retract using a built-in counterweight system.
Wide Compatibility
- Width adjustment: up to 1000mm
- Height adjustment: up to 1000mm
- Suitable for various truck chassis heights
Low Maintenance
Made of high-quality neoprene rubber with excellent abrasion resistance and flexibility
- Designed for over 30,000 cycles
- Black color
High Efficiency
- Equipped with a high-airflow blower (220V)
- Outdoor installation
- Operates in extreme weather (-30°C to +60°C)
Signal Lights
Clear and visible signal light system coordinates operations between truck drivers and forklift operators for safe, orderly loading.
